2. Proteus Simulation Tutorial

Step 1 : Setup the Arduino IDE

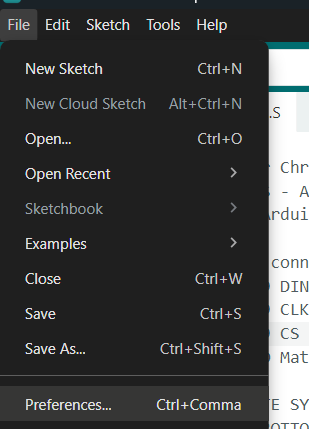

Go to Preferences :

Checklist the Show Verbose output during compile and upload :

Step 2 : Compile the Code

Compile the code using this button :

Find the Hex link on the output terminal :

Step 3 : Connect the Hex

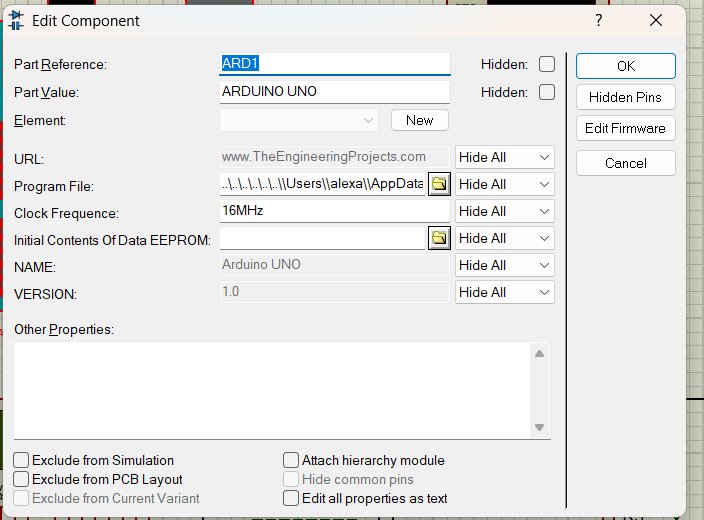

Double click the Arduino on the Simulation :

Copy the hex to the Arduino on the Proteus Simulation :
\

Step 4 : Run the Code

COMPLETE
